High Tensile Strength Steel Wire for Prestressed Concrete 7 Wire Strand

The prestressed steel strand is one of the most important products in our enterprise, which is used to match the highend structurd of concrete such as railways, highways, bridges, mine, nuclear power plant, hydropower, large-span buildings and so on.

Send Inquiry

The PPGL coils, ppgi colour coated Coating Steel Sheets, Spiral submerged arc welded pipe we offer are all designed and produced by our professionals, and can be said to be the most cost-effective products in the market. In the future, we will continue to increase investment in R&D through a diversified mechanism of technological innovation to seize new opportunities in the development of the energy internet. With our rich technology, development and manufacturing experience accumulated over the years, we continue to expand your business field and closely match the needs of consumers for personalized purchasing. We pay high attention to customer service, and cherish every customer. Our technology leadership, application expertise and wide range platform make us to be the ideal partner for customized product development.

Product Introduction

High Strength Prestressed Steel Strand is one of the most important products in our enterprise. It has a wide range of uses, not only in the construction of high-end concrete structures such as railways, highways, bridges, nuclear power plants and large-span buildings, but also in industries such as storage rack manufacturing, lifting machinery manufacturing, and wind power equipment manufacturing.

Features

High Strength Prestressed Steel Strand has a unique manufacturing process, using cold-rolled and hot-drawn production technology to complete the fusion between metals. Due to high-quality materials and high-tech processing, it will not appear disjointed, peeled, and cracked. Moreover, it has a thick surface metal layer, strong corrosion resistance and long service life. Its connection process is safe and reliable, the joint is firm and the stability is good. It has strong functionality, and the surface metal has good electrical conductivity.

High strength prestressed steel strand

Standard: GB/T5224, ASTM416, BS5896, JIS G3536, UNE 36094, KS D, AS/NZS4672

Structure And Size: 1×7wires - 9.5/11.1/12.7/15.2/15.7/17.8/21.6 mm

Good performance characteristic:

High Tensile Strength And Elongation;

Low Relaxation Value;

Small Stress Losing;

Excellent Durable Anti-Fatigue Performance

GB/T5224-2014

Grade	Nominal DIA of Strand	Tolerance	Steel Area of Strand	Weight of Strand	MIN Breaking Strength of Strand	MIN Load at 0.2% Extension	Elongation L0≧500mm	Relaxation Properties
Grade	mm	mm	m㎡	kg/1000m	kN	kN	%	70% Initial Actual Load	80% Initial Actual Load
1860	9.53	0.5 0.15	54.8	430	102	89.8	≧3.5	≦2.5	≦4.5
	12.7	0.4 0.15	98.7	775	184	162
	15.2		140	1101	260	229
	15.7		150	1178	279	246

ASTM A416/A416M

Grade	Nominal DIA of Strand	Tolerance	Steel Area of Strand	Weight of Strand	MIN Breaking Strength of Strand	MIN Load at 1% Extension	Elongation L0≧600mm	Relaxation Properties
Grade	mm	mm	m㎡	kg/1000m	kN	kN	%	70% Initial Specified Load	80% Initial Specified Load
270	9.53	0.65 0.15	54.8	432	102.3	92.1	≧3.5	≦2.5	≦3.5
	12.7		98.7	775	183.7	165.3
	15.2		140	1102	260.7	234.6

BS5896: 2012

Grade	Nominal DIA of Strand	Steel Area of Strand	Weight of Strand	Characteristic value of MAX force	MAX value of MAX force	Characteristic value of 0.1% proof force	Total MIN percentage Elongation at MAX force with L0≧500mm	Relaxation Properties
Grade	mm	m㎡	kg/1000m	kN	kN	kN	%	70% initial force	80% initial force
270	9.6	55	429.6	102	117	89.8	≧3.5	≦2.5	≦4.5
	12.5	93	726.3	173	199	152
	12.7	112	874.7	208	239	183
	12.9	100	781	186	214	164
	15.2	139	1086	259	298	228
	15.7	150	1172	279	321	246

We can also produce the pc strand according to AS/NZS 4672:2007, IS 14268-2017 and prEN 10138-3:2009

Production Process And Work Shop

Process as below:

Raw Materials（tested wire rod）→ Surface Treatment → First Drawing → Strand(9 times drawing) → Stabilizing Treatment → Rust-Proof And Coiling → Packing

20210701155806841950951aa34061938df8de2fff3278

2021070115581253127b69eed8491dab8a306985cf5a48

20210701155815d3adaec325944f8ba141a87ce9c0b09a

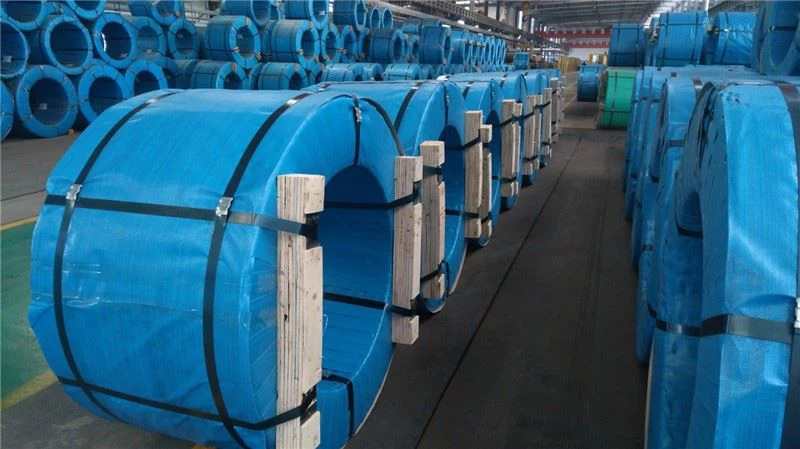

2021070115581823be6023692e4bf3a970d5eae7a37d80

202107011558217673c69b87e0491985c652103aeff468
